Description

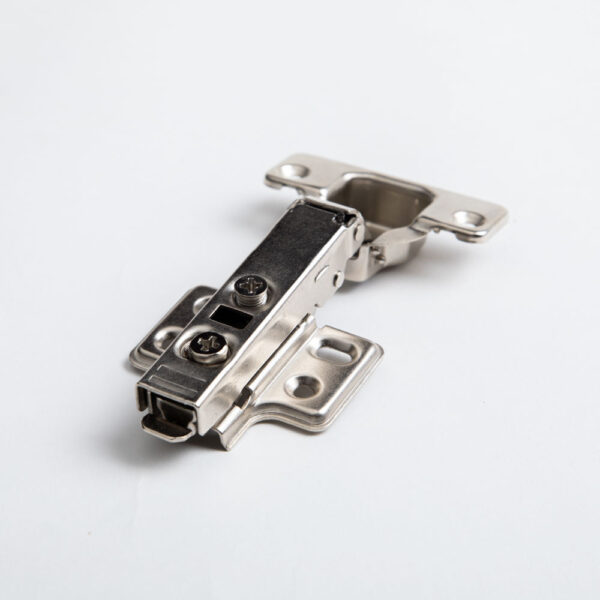

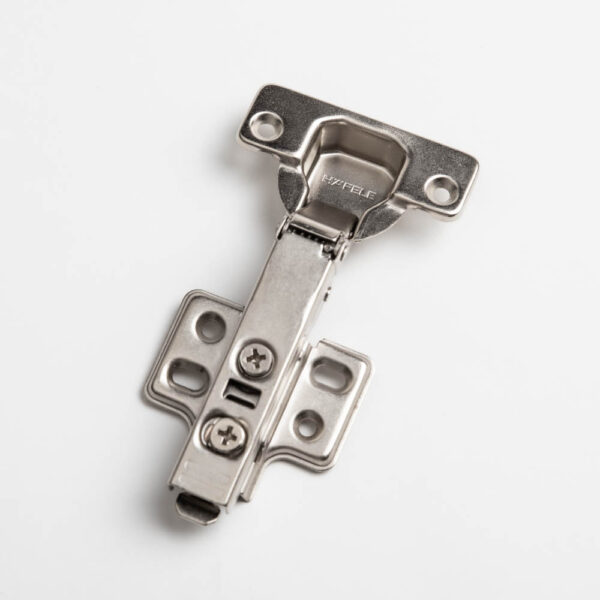

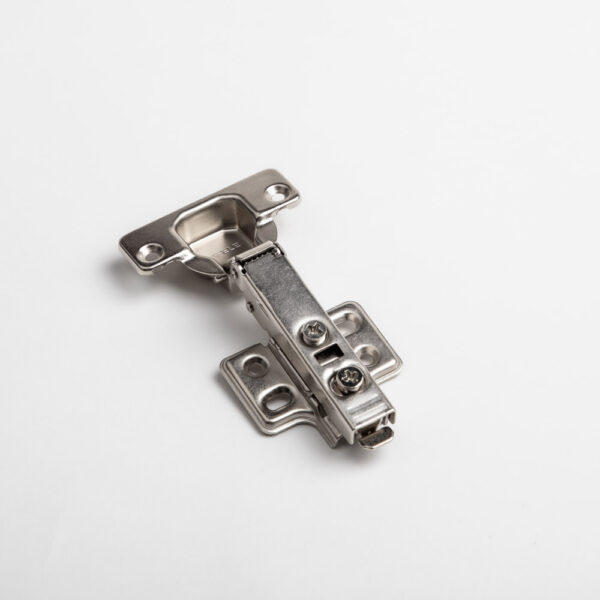

German Precision Hinge
Experience the epitome of German quality with our precision-engineered hinge.
Crafted to perfection, this hinge embodies the highest standards of durability, functionality, and aesthetics.
The smooth and silent operation of the soft-closing mechanism ensures gentle and controlled closure for your convenience.
Elevate your project with the reliability and performance of our exceptional hinge solution.
Adjustable in All Dimensions
Our hinge is adjustable in all dimensions, allowing you to customize it to your exact specifications.
Achieve seamless functionality and precise alignment for your doors with ease.
Refer to the illustration for the adjustable dimensions:
- Depth adjustment
- Horizontal adjustment
- Vertical adjustment
Technical Specifications

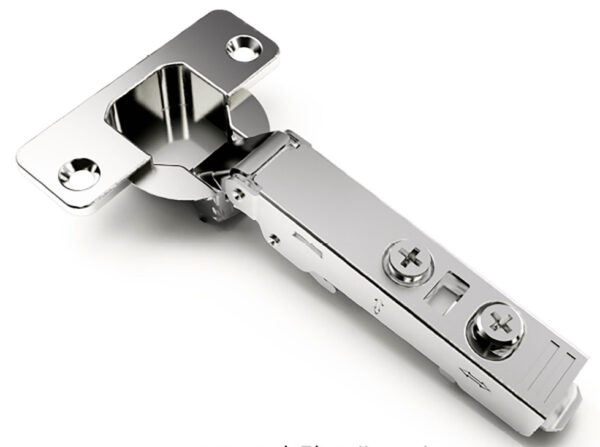

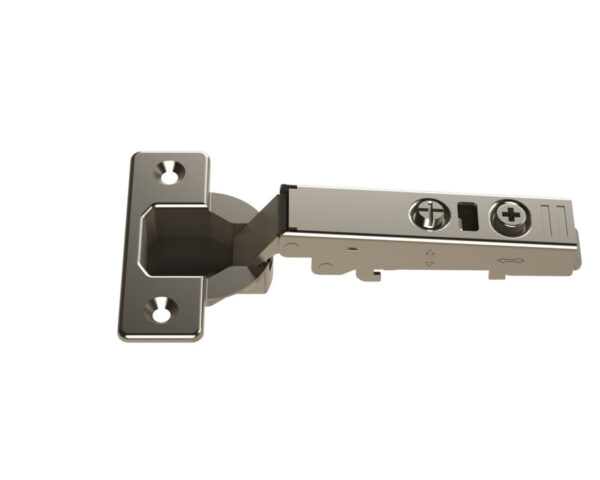

Concealed hinge version

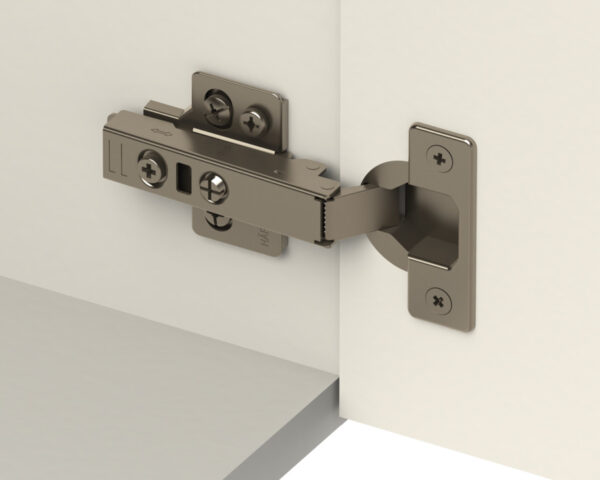

Full overlay mounting
Material
Cold rolled steel

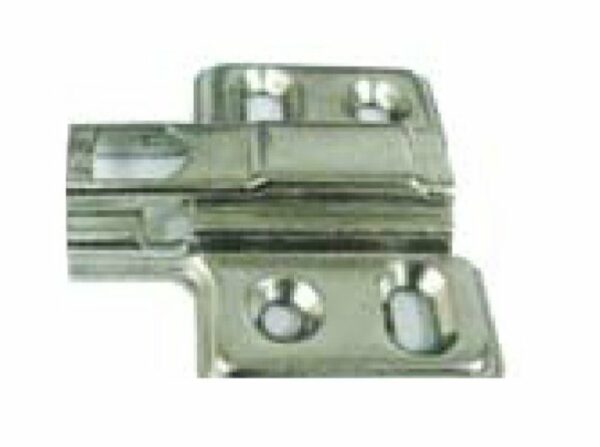

Mounting plate material
Zinc, galvanized
Closing mechanism
Soft closing
Opening angle
110°
Cup drilling depth
12 mm
Cup drilling Ø
35 mm
Drilling pattern
48/6
Dimensions
105.5×61.6×37.5 mm
