Description
Product Highlights
Simple Operation

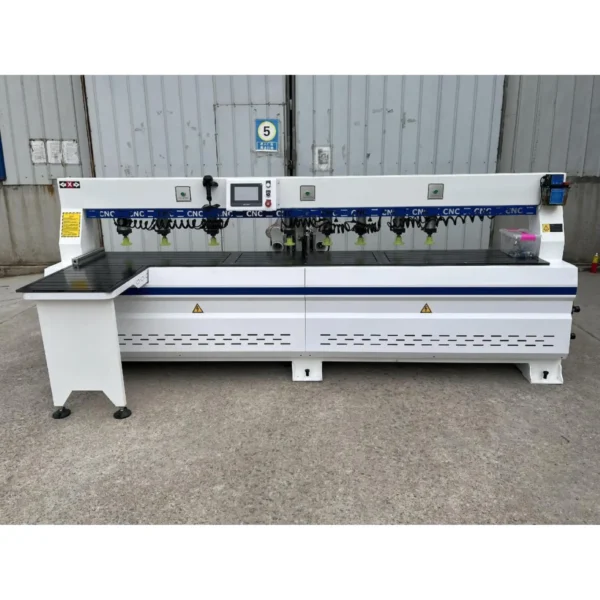

All purpose side hole drilling
Advanced Automation
Banner Laser Precision
Technical Specs
Equipment Size
3600 x 1300 x 1450 mm
Workbench Height
750 mm
Maximum Board Size (L/W/H)
2800 x 1300 x 50 mm
X range
0 - 2800 mm
Y range
0 - 50 mm
Z range
0 - 50 mm
Spindle Motor Brand
SCS/Huajiang/Changsheng/Akemde
Spindle Motor Speed
18000 RPM
Spindle Motor Power
T1 Spindle 2.2KW T2 Spindle 2.2KW
Control System
Lorenz
Drive Motor Brand
Dongling Servo Motor
Drive Motor Power
750W Servo * 3 (Z-axis with brake)
Laser Sensor
Banner Laser Head
Screen
7-inch Touch Screen
Electrical Components
Chint Electrical Components
Frequency Converter
Dingshen 2.2KW
Central Lubrication System
Automatic Lubricating Oil Pump
Bed Body
Ageing Treatment
Guide Rail
20-square Guide Rail
Machine Head
Reinforced Aviation Aluminum Profile
Gear Rack
Jueli Gear Rack
Reducer
Taiwan Planetary Gear Reducer
Ball Screw
25 High-Precision Ground Ball Screw
Motor Base
Die-Casting High-Precision Ground
Pneumatic Components
Besten Pneumatics
Bearings and Bearing Seats
Taiwan Renben
Transmission Cable
Slotted Isolation
Cable
Shanghai Gao Ruo Double Sheath
Positioning Method
Cylinder + Slider Active Positioning
Pressure Method
Pneumatic Pressure
Pressure Height
0 - 50 mm
Drag Chain
High-Toughness Nylon Drag Chain
Tabletop
PVC High-Toughness Engineering Board
Idle Speed
10 - 100 m/min
Processing Speed
10 - 80 m/min
Air Supply
0.6MPa/8MM Diameter Air Pipe
Power Supply
4*6 Square National Standard Power Cable
Dust Prevention
Iron Sheet Dust Prevention
Power
3-Phase/380V/50Hz/6KW
Main Functions
Three-in-One / Grooving / Various Invisible Connectors (Tenon and mortise, Lockdowel, Lamello, etc.) / Scan to Process
FAQ
What functions does this side drilling machine offer compared to a single head side drilling machine?
This machine provides additional functions such as side holes, dowel holes, blind holes, locating slots, opening slots, and drilling hidden parts.
How many spindles does the machine have, and what is their purpose?
The machine has 2 spindles, with each spindle capable of holding a tool bit. One bit is used for making side holes, and the other is for making slots.
